After 3 years of fantastic reviews, awards and accolades we distilled the essence of the ‘old’ eOne-Sixty to create an innovative new carbon frame with easy access internal battery that can be charged on or off the bike.

After a huge investment in technology, we were able to replicate the frame in aluminium. The new laser cutting machine can perform all the process previously done by 6 CNC machines in a matter of minutes.

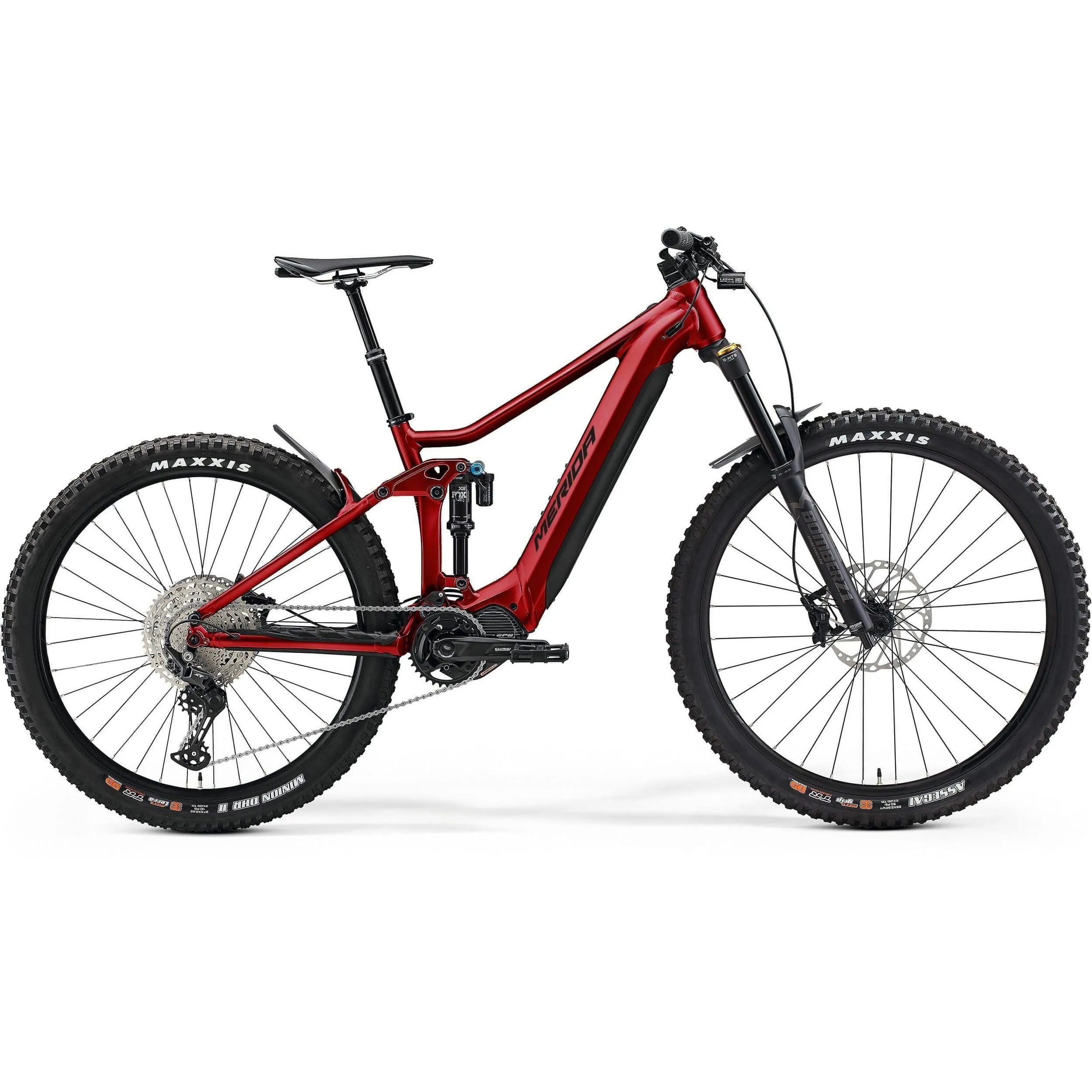

The new eOne Sixty is perfect for e-enduro riding with its perfectly tuned MTB geometry and ""mullet"" wheel standard it feels incredibly planted when descending the most demanding of trails.

Our design ethos perfectly mirrors Shimano, creating eBike products that mirror normal riding.

The eOne-Sixty 700 uses the brand new Shimano EP8 motor delivering 85NM but in a very smooth and natural manner powered by the new Shimano 630w battery. Marzocchi Z1 fork, Fox Float shock, Shimano hydraulic brakes and Shimano XT 12 speed transmission."

SHIMANO'S EP8
Comes equipped with the new EP8 motor from Shimano STePS. It offers an increased performance of 85 Nm, less weight, a further reduction in size and less friction. On top of that, the new internal battery offers an extended range and super-fast charging capabilities.

INTERNAL BLOCK
First introduced in 2015, the e-bike version of the 'Internal Block' is incorporated directly into the frame and prevents the fork crown from hitting the frame in case of a crash or an extreme steering angle. As an extra protection, there are additional rubber bumpers on the frame to avoid any frame damage from the fork crown.

SATELLITE POINTS
The eONE-SIXTY features a perfectly positioned satellite on/off switch, at the head tube end of the top tube, and a well-protected satellite charging port, positioned in the main frame triangle, just above the motor.

CLEVER WHEELS
To give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5" tyre and a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction.

WATER CARRIER
Due to the integrated battery, we were able to offer water bottle cage fixing points, allowing bottles or accessories like a lock or pump to the frame to be fitted into the main frame triangle. Great if you want to keep your back free of hydration packs and backpacks.

CARBON OR ALUMINIUM
These models are available in two different frame options. A carbon front end combined with a 6061 aluminium rear end, or a more budget-friendly all-aluminium chassis.

Features:

• Aluminium frame, 150mm suspension travel
• Marzocchi Z1 Ebike Air 160mm suspension travel
• FOX Float DPX2 Performance
• Shimano SLX 4 piston brakes
• Shimano 1x12 drivetrain
• Merida Expert TR dropper
• Shimano EP8 85Nm w/ Shimano E8036 630Wh battery
